Nissei ASB

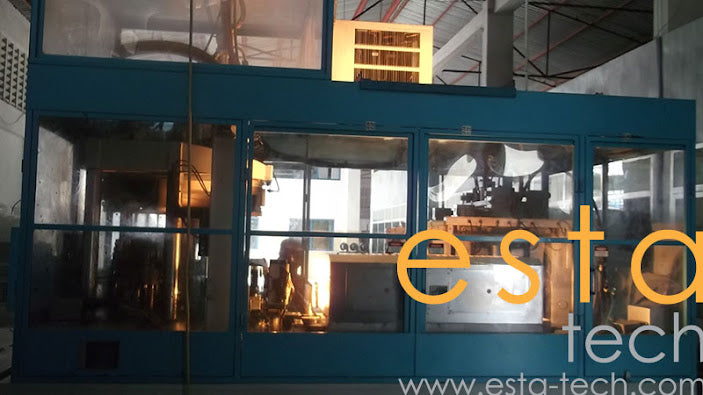

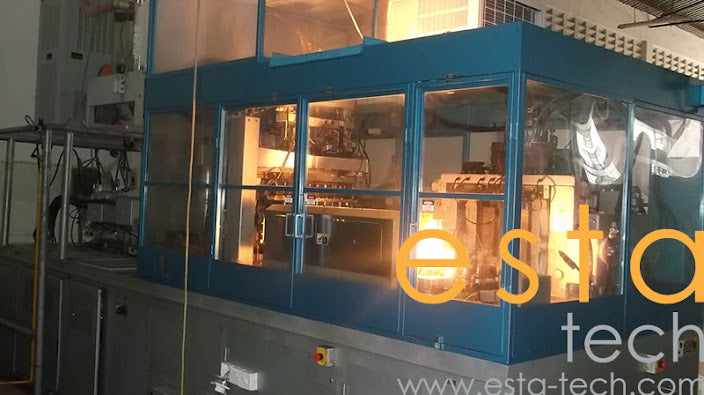

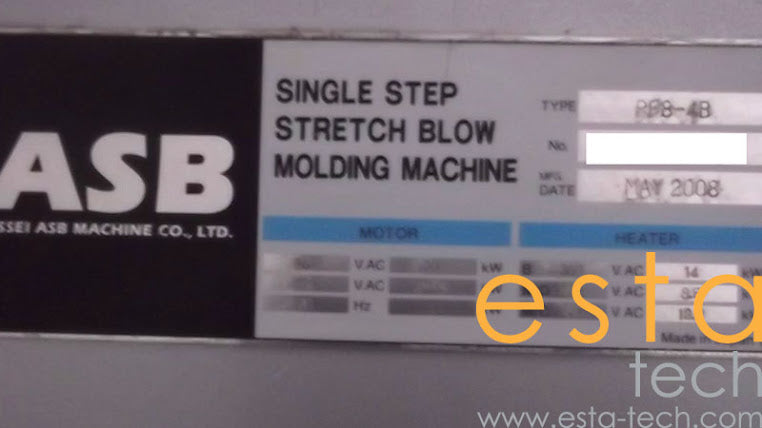

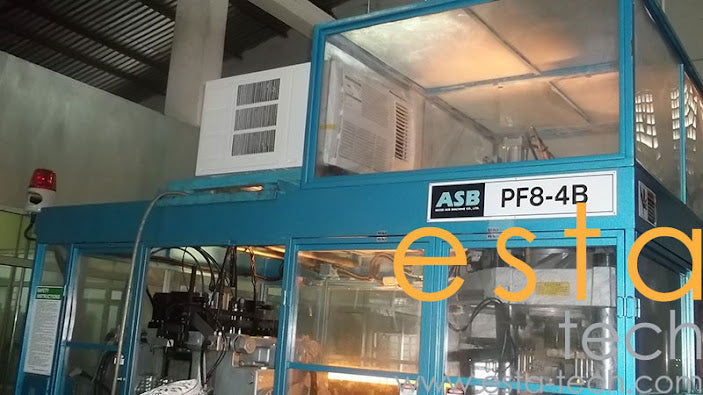

NISSEI PF8-4B (YR 2008) Used Pf-Type Biaxial Orientation Injection Stretch Blow Moulding Machine
NISSEI PF8-4B (YR 2008) Used Pf-Type Biaxial Orientation Injection Stretch Blow Moulding Machine
Couldn't load pickup availability
NISSEI PF8-4B (YR 2008) Used Pf-Type Biaxial Orientation Injection Stretch Blow Moulding Machine for sale
Number of Cavity: Injection cavity 8 | Blow Cavity: 4
Injection unit: IU-35
Hydraulic circuit pressure: 14,0 MPa
Screw diameter: 64mm
Injection capacity: 515cm3/shot
Injection pressure: 98MPa
Injection rate: 269cm3/sec
Screw stroke: 160mm
Unit stroke: 240mm
Screw rotation speed: 150 r/min
Includes :
- 2xmoulds for mineral water bottle

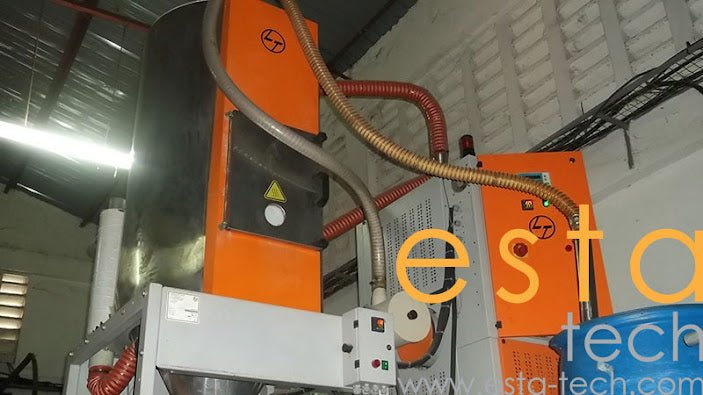

- Dehumidifying resin dryer with hopper and auto-loader
- Spare parts
The machine is in good working condition. Please contact us for more details and price.
