Engel

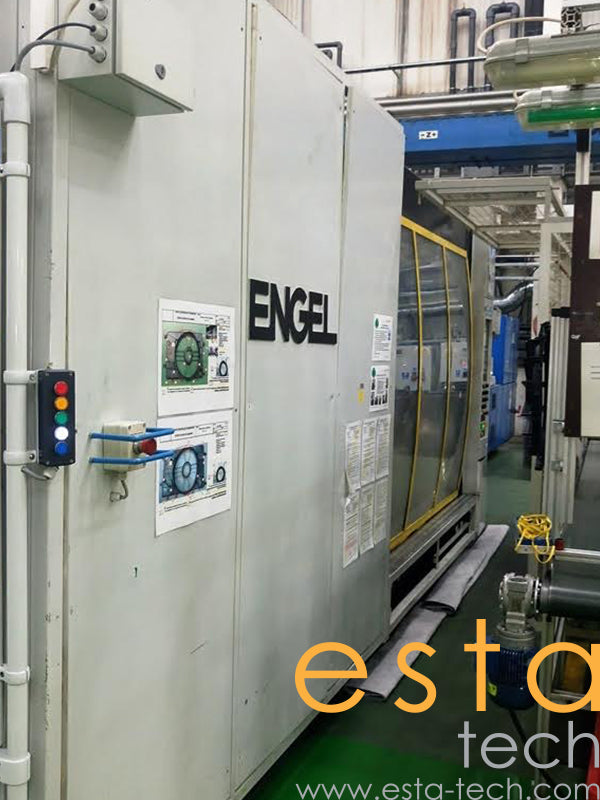

ENGEL ES 14000-1500 DUO (YR 1996) Used Plastic Injection Moulding Machine

ENGEL ES 14000-1500 DUO (YR 1996) Used Plastic Injection Moulding Machine

ENGEL ES 14000-1500 DUO (YR 1996) Used Plastic Injection Moulding Machine for sale

Year: 1996

Model: ES 14000/1500 DUO

Machine Clamping force: 1500 ton

Distance between tie bars: 1500 x 1250 mm

Platen size: 1200 x 1100 mm

Machine opening stroke: 1500 mm

Daylight

Mold Height (min.): 700 mm

Mold Height (max.): 1000 mm

Injection (fixed side) center ring diameter: dia. 250 H8

Ejection (movable side) center ring diameter: dia. 250 H8

Hydraulic core # (mobile side): 2

Hydraulic core # (fixed side): 1

Number of cooling circuit: 10 per side, separately controlled Robot

Mold loading type: Top by crane (12 tons maxi)

Please contact us for more details and price.
